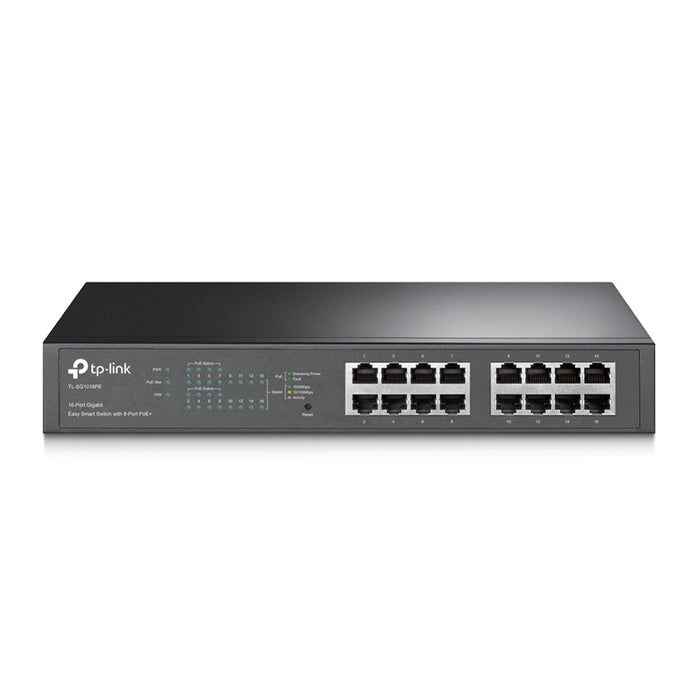

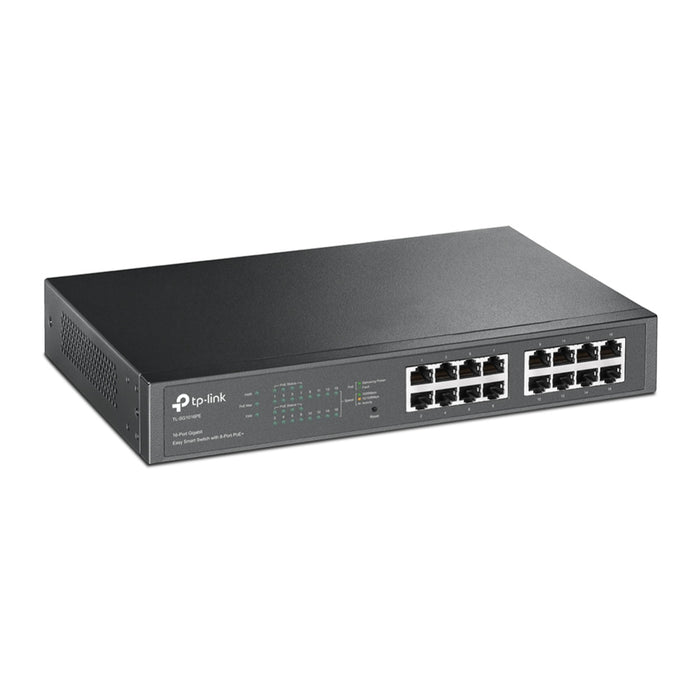

TP-Link TL-SG1016PE, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

TP-Link TL-SG1016PE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Rack mounting

• Managed L2 Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 16
• Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table: 8000 entries Switching capacity: 32 Gbit/s
• Rack mounting
• Power supply included Power over Ethernet (PoE)

Features

Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Number of VLANs	4000
Data transmission
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Security
IGMP snooping	Yes
Static port security	Yes
Loop protection	Yes
Design
Rack mounting	Yes
Stackable	No
Product colour	Black
LED indicators	Yes
Number of fans	1 fan(s)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	124.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	150 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging content
Cables included	AC
Rack mount kit	Yes
Certificates
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
