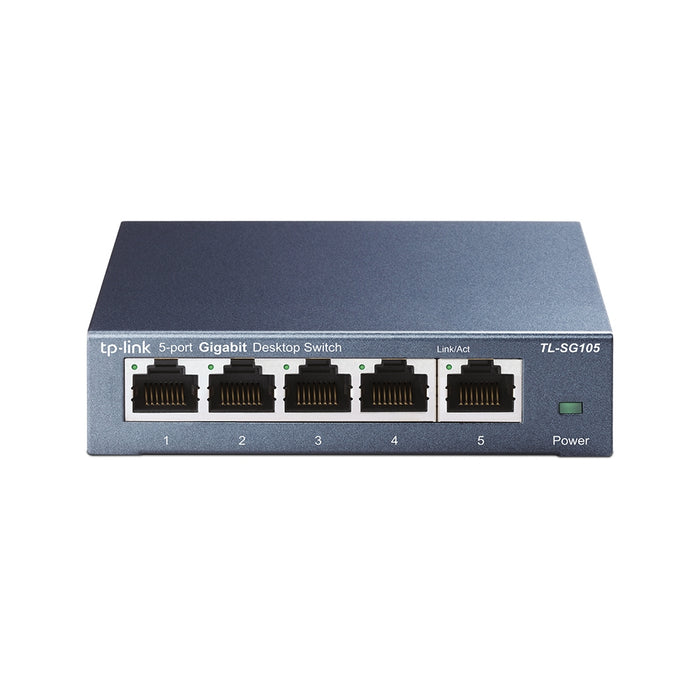

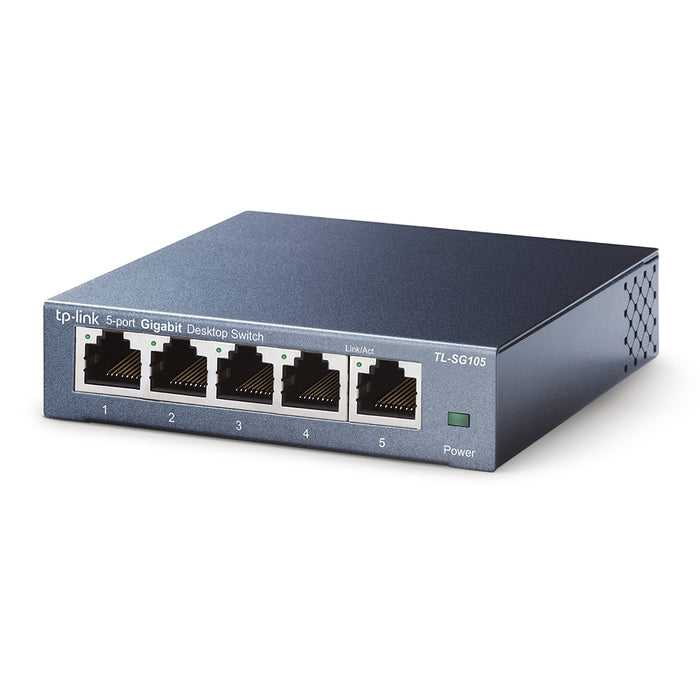

TP-Link TL-SG105, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

TP-Link TL-SG105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

• Unmanaged L2
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 5
• Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
• MAC address table: 2048 entries Switching capacity: 10 Gbit/s
• Power supply included

Features

Management features
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
MAC address table	2048 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1 MB
Security
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	No
Product colour	Black
Housing material	Steel
LED indicators	Yes
Wall mountable	Yes
Power
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	0.6 A
Power consumption (max)	2.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.83 BTU/h
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging content
Cables included	AC
User guide	Yes
Packaging data
Package type	Box
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
