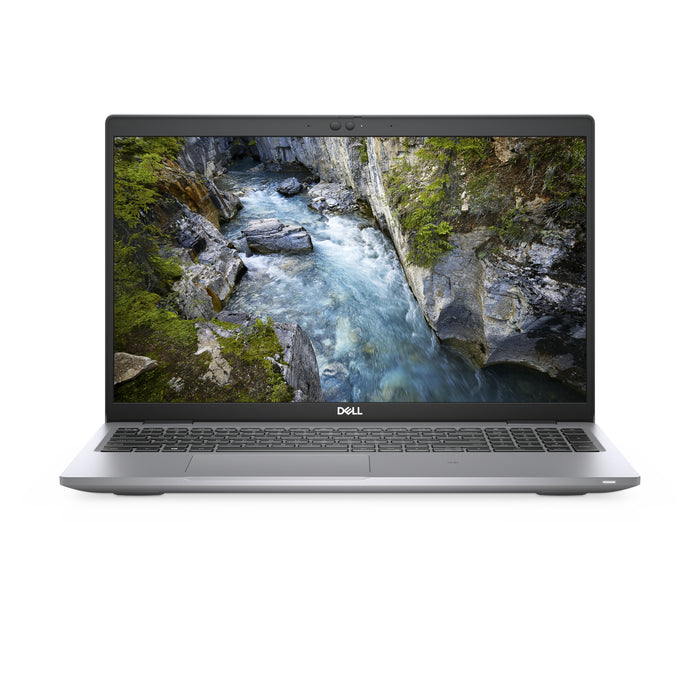

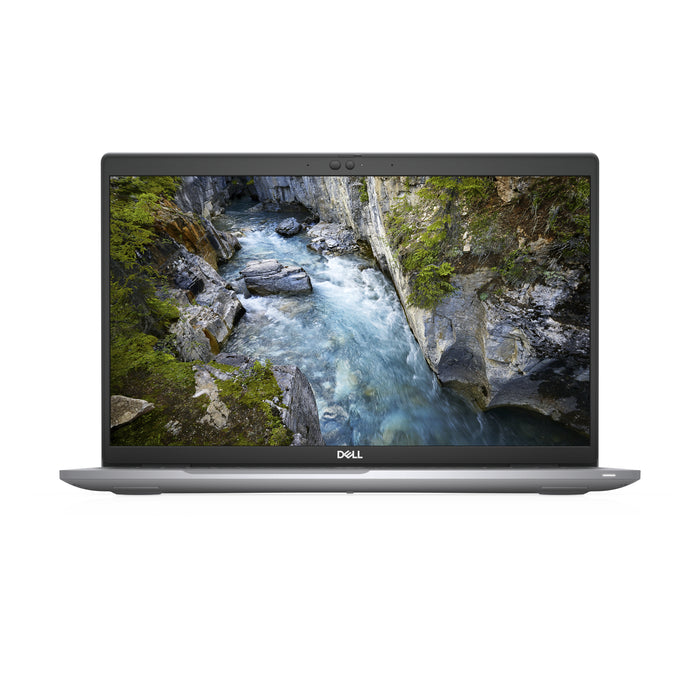

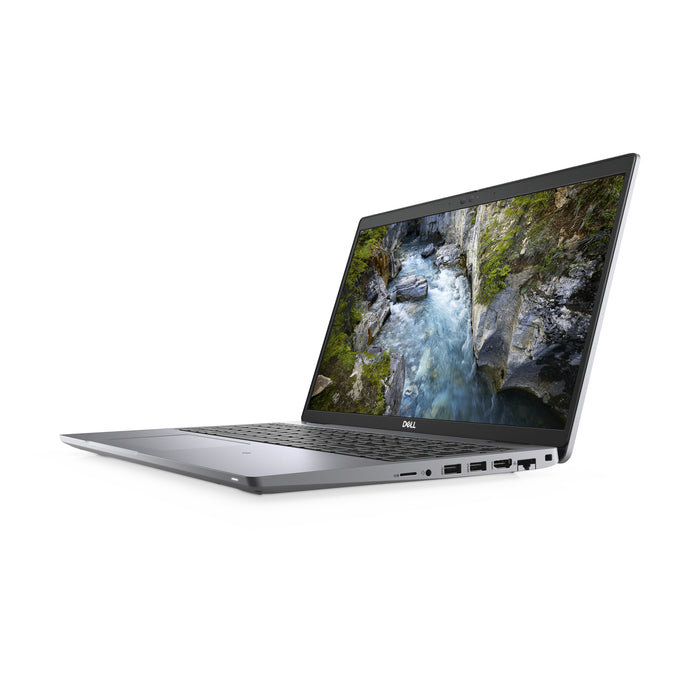

DELL Precision 3560, Intel® Core™ i7, 39.6 cm (15.6"), 1920 x 1080 pixels, 16 GB, 256 GB, Windows 10 Pro

DELL Precision 3560. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-1165G7. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA Quadro T500. Operating system installed: Windows 10 Pro. Product colour: Grey

• Business Mobile workstation Clamshell Grey
• Intel® Core™ i7 i7-1165G7 Processor cores: 4
• 39.6 cm (15.6") Full HD 1920 x 1080 pixels WVA LED backlight 16:9
• 16 GB DDR4-SDRAM 3200 MHz 1 x 16 GB
• 256 GB SSD
• NVIDIA Quadro T500 2 GB Intel Iris Xe Graphics
• Wi-Fi 6 (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.1
• Lithium-Ion (Li-Ion) 63 Wh 130 W
• Windows 10 Pro 64-bit

Features

Design
Product type	Mobile workstation
Product colour	Grey
Form factor	Clamshell
Market positioning	Business
Intel® vPro™ Platform Eligibility	No
Display
Display diagonal	39.6 cm (15.6')
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	250 cd/m²
Pixel density	141 ppi
RGB colour space	NTSC
Colour gamut	45%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	700:1
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	11th gen Intel® Core™ i7
Processor model	i7-1165G7
Processor cores	4
Processor boost frequency	4.7 GHz
Processor cache	12 MB
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Graphics
Discrete graphics card model	NVIDIA Quadro T500
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR6
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Audio
Audio chip	Realtek ALC3204
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Camera
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Mobile network connection	No
Wi-Fi data rate (max)	2400 Mbit/s
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1
Keyboard
Numeric keypad	Yes
Keyboard backlit	Yes
Full-size keyboard	Yes
Software
Operating system architecture	64-bit
Operating system language	Multilingual
Windows 11 free upgrade	Yes
Trial software	Microsoft Office
Operating system installed	Windows 10 Pro
Processor special features
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	No
Idle States	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	63 Wh
Battery voltage	15.2 V
Battery recharge time	3 h
Fast charging	Yes
Battery charge indicator	Yes
Battery weight	250 g
Power
AC adapter power	130 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.8 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
Security
Cable lock slot	Yes
Smart card reader	Yes
Face recognition	Yes
Windows Hello	Yes
Password protection	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Weight & dimensions
Width	357.8 mm
Depth	236.2 mm
Height (front)	1.99 cm
Height (rear)	2.21 cm
Weight	1.59 kg
Packaging content
Cables included	AC
Logistics data
Harmonized System (HS) code	84713000
